| Single Wire (0.9mm, 1.4mm, 2.3mm, 4mm, 5mm) |
|
 |
|
1.

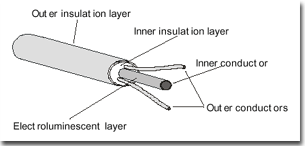

Strip EL wire’s internal and external coating by about 0.9mm ~ 1.3mm. At this time, please be careful that external two strands are not broken. |
|
 |
|
2.

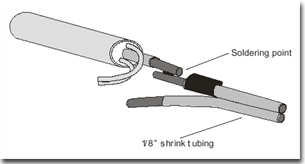

Cut Dia. 1/8” (about 3.2mm) shrink tube (recommended by Japan Ssmimoto Co., Ltd.) by about 20mm and then, insert it on connected electric wire. |
|
 |
|
3.
Solder EL wire’s internal thick wire and electric wire’s one end together. |
[Caution]
In soldering EL wire, use min. amount of flux if needed but be careful that it is not stained on thick wire(of EL wire)’s coated layer. (they might be chemically reacted) |
|
|
 |
|
4.
Push previously inserted shrink tube on soldered part and heat it. |
|
 |
|
5.

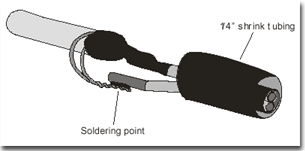

EL Wire’s external side: twist two thin wires together and solder it on electric wire’s other end. Insert shrink tube of Dia. 1/4” (about 6.4mm) in the electric wire in advance. |
|
 |
|
6.

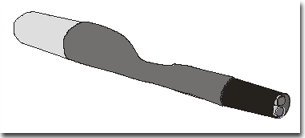

Push previously inserted shrink tube of 1/4” on soldered part and heat it. |
|
 |
|
7.

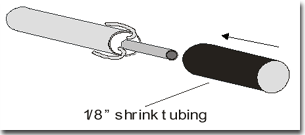

As for finishing work of EL wire’s other end not connected with inventor, strip EL wire’s external coating and internal coating by about 0.5mm like figure, pull back two inside thin wires’ external coating, and then, insert shrink tube of 1/8” (about 3.2mm) on it. |
|
| 8. |

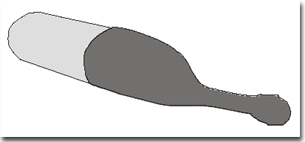

Cover shrink tube on EL wire’s both poles well and heat it. And then, when you press shrink tube’s end by using wide part of flier, etc., internal adhesive is stuck on it like figure, which plays waterproof role. |
|
| |
